Brushless DC Motor Basics
An engineer’s guide to understanding the design, mechanics, and advantages of brushless DC technology
Brushless DC Motor Basics for Efficiency and Performance
As modern electromechanical devices demand higher efficiency, tighter footprints, and longer operational lifespans, the industry is rapidly transitioning away from legacy brushed motor technology. At the forefront of this shift is the Brushless DC Motor (BLDC). Offering superb controllability, immense power density, and virtually maintenance-free operation, brushless motors are now the standard for high-performance applications across the medical, industrial, and automotive sectors.
What is a Brushless DC Motor?
A brushless DC motor is a highly advanced synchronous electric motor that converts supplied electrical direct current (DC) energy into mechanical rotational energy. It achieves this using a complex array of electromagnets located in the stationary part of the motor (the stator) to spin permanent magnets located on the rotating shaft (the rotor). Crucially, as the name explicitly states, this entire process is achieved entirely without the use of mechanical carbon brushes.

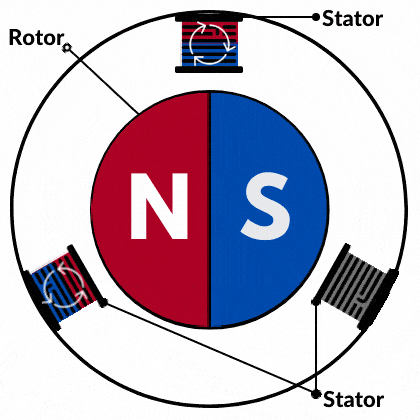

How Does a Brushless Motor Work?
To fully understand the benefits of a BLDC motor, one must understand how it differs from traditional motor architecture. In a standard brushed motor, the electromagnets (coils) are located on the spinning rotor, while the permanent magnets are stationary. Power is transferred to the spinning coils via physical carbon brushes rubbing against a mechanical commutator.
A brushless motor completely inverts this design. The permanent magnets are securely affixed to the spinning rotor, while the copper electromagnetic coils are relocated to the stationary stator attached to the motor’s outer body.
Because the coils no longer spin, there is absolutely no need for mechanical brushes to transfer power. Instead, motor commutation is handled entirely electronically. An external motor controller (or drive circuit) rapidly alternates the magnetic poles of the stator windings. By precisely adjusting the magnitude and directional flow of the current entering these coils, the controller creates a rotating magnetic field that pulls the permanent magnets on the rotor along with it, inducing smooth and highly controlled rotation.
The Engineering Advantages of BLDC Motors
While the initial integration of a BLDC motor requires a more complex electronic controller, the long-term operational advantages far outweigh the design complexities.
Zero Mechanical Wear and Tear
The most significant failure point of a traditional DC motor is the physical friction of the brushes rubbing against the commutator. Over time, these brushes wear down to dust, eventually rendering the motor completely useless until rebuilt. By eliminating the brushes, a BLDC motor experiences zero internal mechanical friction aside from the ball bearings on the shaft. This results in a drastically increased operational lifespan and entirely maintenance-free operation.
Elimination of Electrical Noise and Sparks
In brushed motors, the physical disconnect and reconnect of the brushes against the commutator creates micro-arcing and sparking. This generates immense amounts of Electromagnetic Interference (EMI) and electrical noise. BLDC motors produce zero sparking, leading to an incredibly quiet electrical profile. This makes them the mandatory choice for sensitive medical devices and communication equipment where electrical noise is strictly prohibited.
Superior Power Density and Efficiency
Brushless motors are vastly more efficient at converting electrical energy into rotational force. When compared to a brushed motor, a BLDC motor can output significantly more continuous torque in a much more compact physical footprint. To match the torque output of a brushless motor, a brushed variant would require massively oversized magnets, heavily increasing both the weight and cost of the final unit.
Furthermore, the electronic controller ensures power is delivered with pinpoint accuracy, allowing BLDC motors to sustain much higher rotational speeds (RPM) for longer continuous duty cycles without overheating.
Primary Types of BLDC Motors
Brushless direct current motors are generally categorized into two main physical layouts:
- Inrunners: This design closely mimics the physical footprint of a standard motor. The permanent magnets are mounted on the internal spinning rotor, while the electromagnetic stator coils surround them on the outside. This allows for very high RPMs. (Note: Stepper motors are a specialized type of inrunner brushless motor designed to rotate in highly precise, fixed angular steps).
- Outrunners: This design is essentially an inside-out motor. The electromagnetic stator coils are fixed in the center, while the permanent magnets are housed on an outer bell or casing that spins around the inner core. Outrunners naturally produce far more torque at lower speeds.
For applications requiring massive torque at lower speeds, both inrunners and outrunners can be seamlessly paired with custom gearboxes. Most commonly, planetary gearboxes are integrated to provide a highly efficient, high-torque inline mechanical solution.
Understanding Unique Brushless Motor Parameters
When reviewing a brushless motor specification sheet, engineers will encounter unique performance parameters that dictate the motor’s capabilities. The two most critical are the Back EMF Constant and the Torque Constant.
Back EMF Constant (kv)
The kv rating (velocity constant) is used to calculate the motor’s theoretical no-load RPM per single volt of applied power. For example, if a motor has a specification of 12VDC with a 450 kv rating, the motor will spin at approximately 5,400 RPM when running with no mechanical load (12V \times 450 = 5,400 RPM).
In standard engineering SI units, kv is expressed in Volts / (radians/second). Generally speaking, a higher kv rating translates to a higher top-end RPM, but comes at the sacrifice of total torque and acceleration.
Torque Constant (kt)
The kt rating explains the motor’s exact mechanical torque output relative to a given electrical current draw. Through dimensional analysis using SI units, engineers quickly realize that the torque constant is the exact mathematical reciprocal of the velocity constant. In short: kv = 1/kt (and vice versa).
In standard units, kt is expressed in Newton-Meters per Amp (Nm/A). Understanding this inverse relationship is critical when balancing speed versus pushing or pulling force in your application.
Source Custom Brushless Motor Solutions with ISL Products
As electronic components become increasingly affordable, BLDC technology is rapidly replacing legacy brushed systems across every major industry—from heavy-duty automotive assemblies and industrial robotics to delicate, life-saving medical pumps.
At ISL Products, we have spent decades designing, engineering, and manufacturing value-added brushed and brushless motor solutions. Our applications engineers work directly with your design team to tailor the exact kv, kt, physical footprint, and gear-reduction ratios required for your unique application.
Partnering with an expert early in your design phase can save your team hours of frustrating research and trial-and-error.
